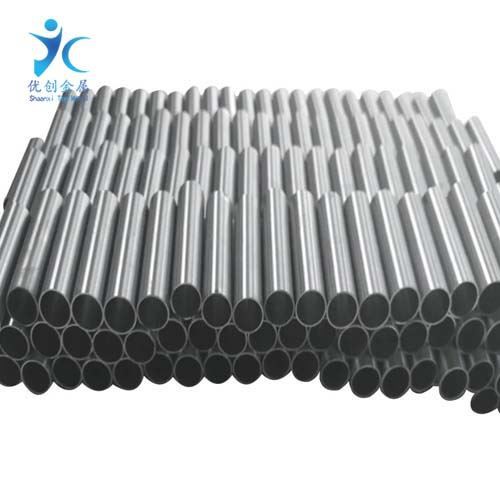

Zirconium 702 Pipe

1.Zirconium 702 pipe
2.Standard:ASTM B658
3.Processing mode:Forging rolling
4.Surface:Polished surface
5.OD100~500mm x thk3~10mm x 1000~6000mm
6.MOQ:1 PC
7.Application:Aerospace,Chemical industry,Petroleum pipe,oil and gas etc
8.Payment method：T/T

Send Inquiry

zirconium product picture

Zirconium 702 pipe is a silver white metal with black powder. Zirconium 702 pipe is produced by melting and casting zirconium into ingot, and then grinding through blank forging. Shaanxi Youchuang Metal Co., Ltd. uses high-purity zirconium to make the zirconium tube products you need. Our products are widely used in aerospace, chemical, military and other fields based on their excellent corrosion resistance and high melting point. Zirconium 702 pipe has excellent chemical properties and belongs to active metal. At room temperature, a protective oxide film is formed on the surface of metal zirconium, so it is very stable in the air and will hardly react with oxygen and nitrogen in the air. Dense zirconium can maintain its metal luster for a long time. However, it is easy to oxidize when heated, form compounds with oxygen and nitrogen, and form an oxide protective layer on the surface. We sincerely provide you with products, regardless of the quantity, we are willing to supply.

Physical and chemical properties

Zirconium 702 pipe chemical require to

ASTM 658 chemical company composition (%)

Zr+Hf	Hf	Fe+Cr	H	N	C	O
≥99.2	≤4.5	≤0.2	≤0.005	≤0.025	≤0.05	≤0.16

Mechanical Properties to ASTM B658

Tensile Strength[Mpa]	Yield Strength,0.2% offset [Mpa]	Elongation[%]
≥380	≥205	≥16

Factory test

Chemical composition test

Mechanical properties test

Flattening inspection

Flaring inspection

Hydraulic inspection

Size

Product Name	OD (mm)	wall thickness (mm)	Length (mm)
Zirconium 702 pipe	88.9	2.11	3000
	114.3	3.02	3000
	141.3	6.55	3000
	168.3	2.77	3000
	189	7.11	3000
	219.1	8.18	3000
	273.1	9.27	3000
	323.9	9.53	3000
	355.6	11.13	3000
	406.4	12.7	3000
	457.2	9.53	3000
	508	15.09	3000
