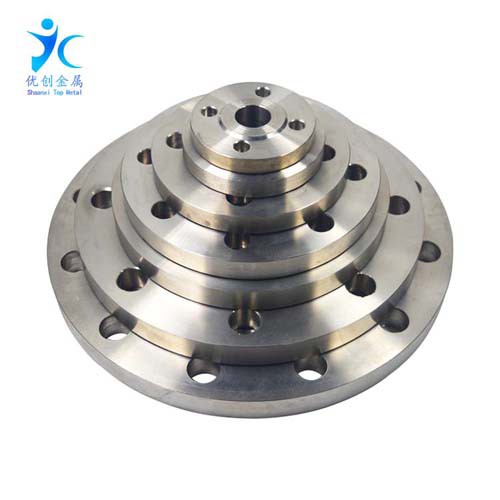

Zirconium Flanges

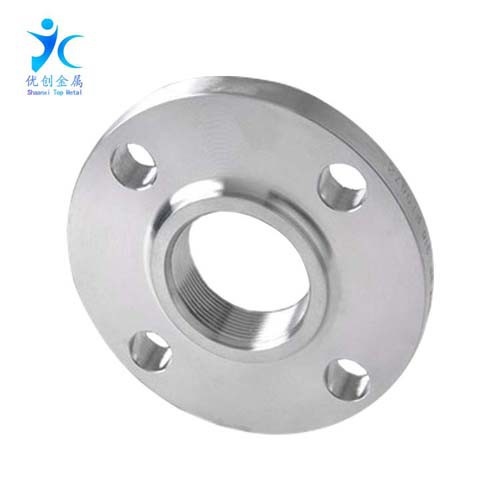

1.Zirconium 702 flanges
2.Specification: ANSI B16.5,ASTM B16.5,JIS B2220, DIN2627-2628,GB/T 9116
3.Dimension:1/2"~ 30"NB, NPS 1/2 - NPS 24 (DN 10 - 2000)
4.Pressure Class:150LB, 250LB ,300LB, 400 LB,500LB, 600 LB,900LB, 1500LB,2500LB

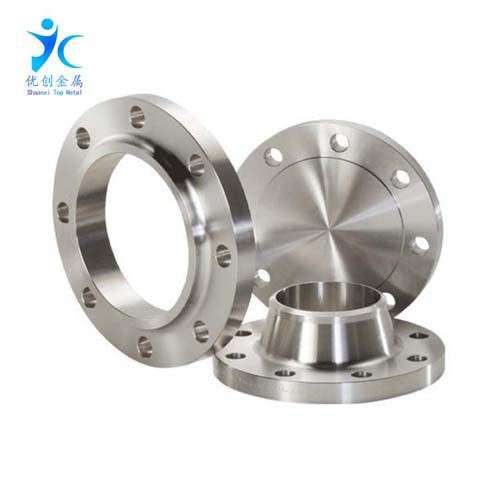

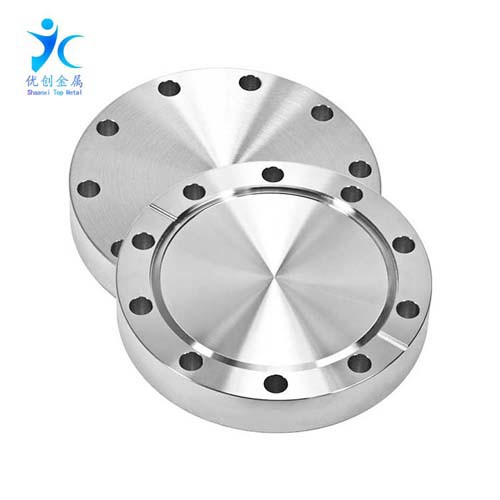

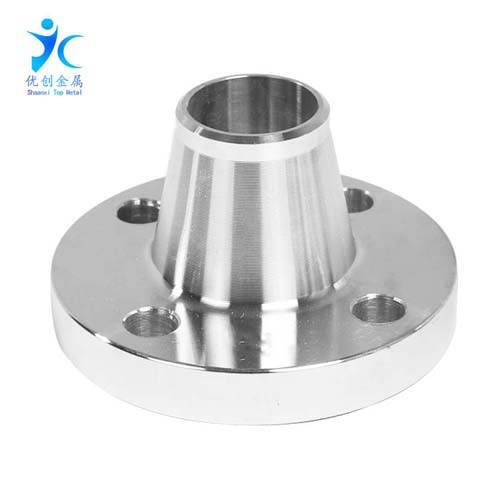

5.Flange types:Weld neck flanges,Slip on flagnes,Blind flanges,Socket welded flanges ,Plate flanges,Threaded flanges,Lap joint flanges.
6.Flange surface types:Flat Face(FF), Raised Face(RF), Ring Type Joint(RTJ)
7.Advantages:Corrosion resistance,high strength,long service life
Zirconium 702 is a pure zirconium.Zirconium 702 flanges have excellent corrosion protection with resistance to stree corrosion cracking. It is commonly used in aerospace materials,chemical industry,petroleum pipe,oil and gas etc. Zr702 flanges have many of types including weld neck flanges,slip on flangs,blind flanges,socket welded flanges,plate flanges,threaded flanges and lap joint flanges. We have some in stock,we would like to supply whatever the quantity is large or small.
Zirconium flanges (UNS R60702)
Chemical composition (%)
Zr+Hf | Fe+Cr | Hf | H | N | C | O |
≤99.2 | ≤0.20 | ≤4.5 | ≤0.005 | ≤0.005 | ≤0.050 | ≤0.16 |
Zirconium flanges Mechanical properties
Tensile strength[Mpa] | Yield strength[Mpa] | Elongation rate[%] |
379 | 207 | 16 |
Details
Product name | Zirconium 702 Flange |
Specification | ANSI B16.5,ASTM B16.5,JIS B2220, DIN2627-2628,GB/T 9116, |
Available Dimensions | 1/2"~ 30"NB, NPS 1/2 - NPS 24 (DN 10 - 2000) |
Pressure Class | PN0.25~32Mpa |
(DIN) PN6,PN10,PN16,PN25 though PN250 | |
150LB, 250LB ,300LB, 400 LB,500LB, 600 LB,900LB, 1500LB,2500LB | |
Processing method | Forged and CNC Machined |
Flange types | WN,SO,BL,SW, PL,TH |
Flange surface | Flat Face(FF), Raised Face(RF), Ring Type Joint(RTJ) |
Application | Widely used in petrochemical equipment,cars,glasse,electronics etc. |
Advantage | 1. Long service life |
2. corrosion -resistant | |
3.hign yeiled strenth and tensile strength. |

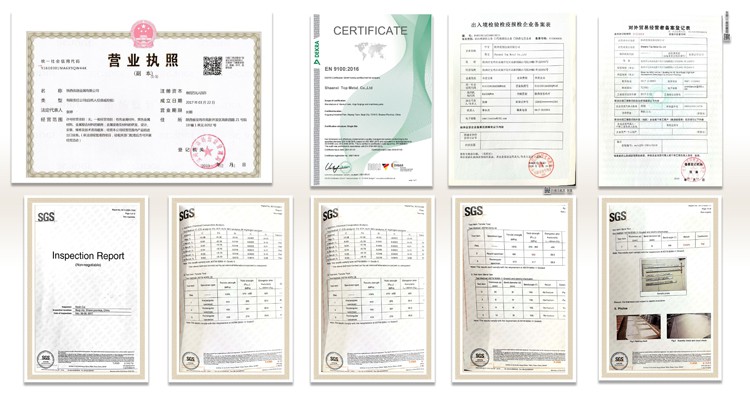

Certificates of quality
