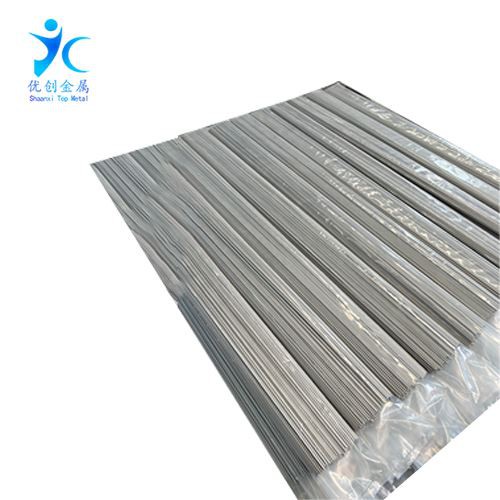

GR5 Medical Titanium Alloy Wire
1.GR5 Medical titanium alloy wire
2.Standard:ASTM F136
3.Size:Dia.0.1~5mm x straight wire/coil wire/spool wire
4.MOQ：1kg or 1pc
5.Advantage:High strength,corrosion resistance
6.Delivery term:FOB/CIF/CFR/EXW
7.Delivery method:By air/by sea/by DHL
8.Delivery time:7-10 days
Product intrduction
| Item name | Grade 5 Ti6Al4V medical titanium wire |
| Standard | ASTM F136,ISO5832-3 |
| Material | Gr5 ELI, Ti6Al4V ELI,GR23 |
| Certificates | ISO9001:2008,SGS,The third test report |
| Shape | Straight wire,coil wire,Spool wire |
| Avalible size | Dia.0.1~5mm x L |
Chemical composition
Grade | Ti | Chemical Composition(%) | Residual elements | ||||||||
| AL | V | Fe | C | N | H | O | Single | Total | |||
| Gr5ELI | Bal | 5.5-6.5 | 3.5-4.5 | 0.05 | 0.08 | 0.05 | 0.012 | 0.06 | 0.1 | 0.4 | |
Mechanical property
| Material | Status | Dianeter | Tensile strength (Rm/Mpa) | Provision of non-Proportional extension strength (Rp0.2/MPa) | Elongation | Reduction |
| A/% | of area Z/% | |||||
| Gr5 ELI | M | Dia0.1-5mm | ≧860 | ≧795 | ≧10 | / |
Packaging

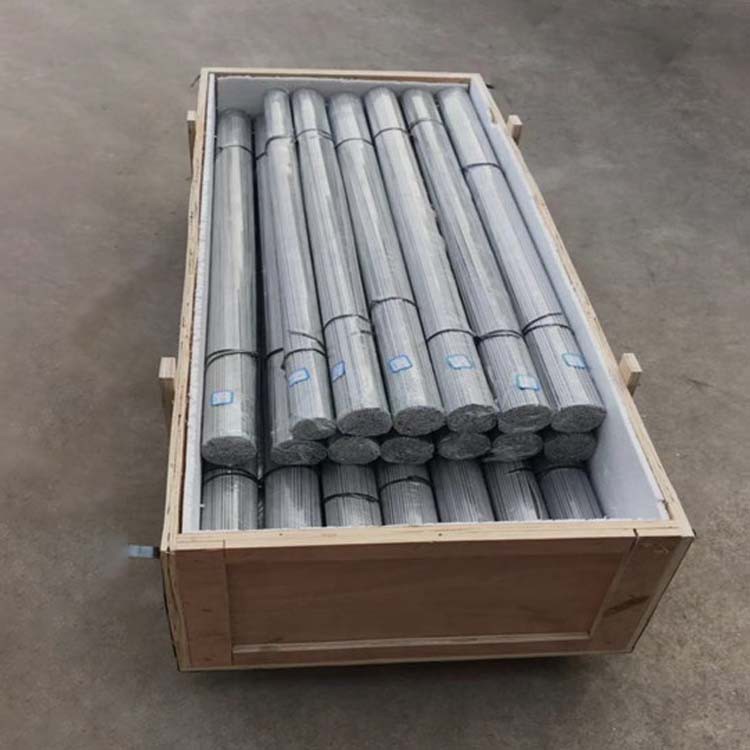

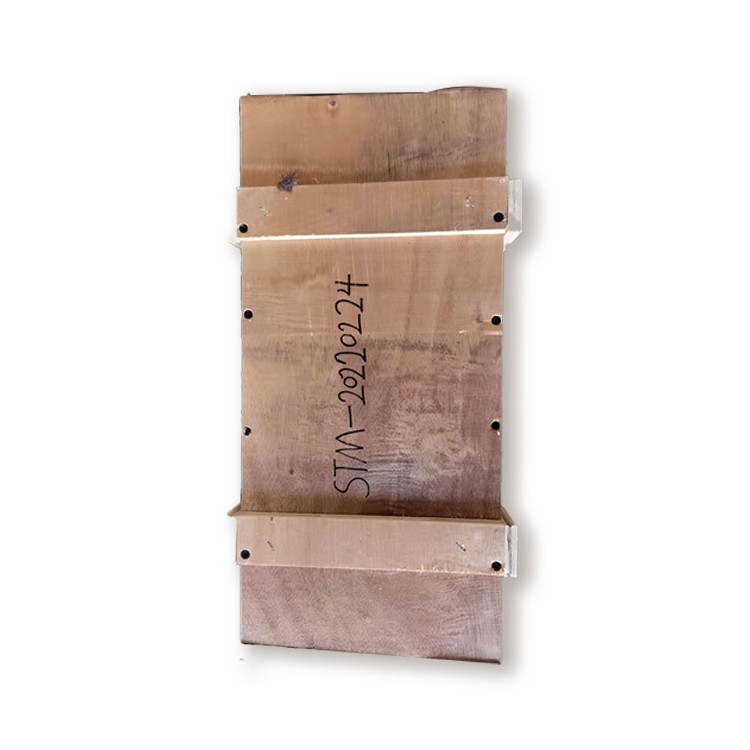

In order to avoide collision and damage in transit,the tantalum rods are packaged into wooden case.

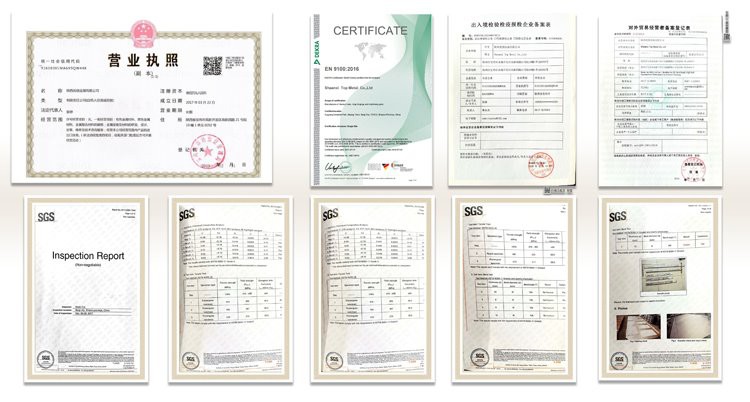

Certificates

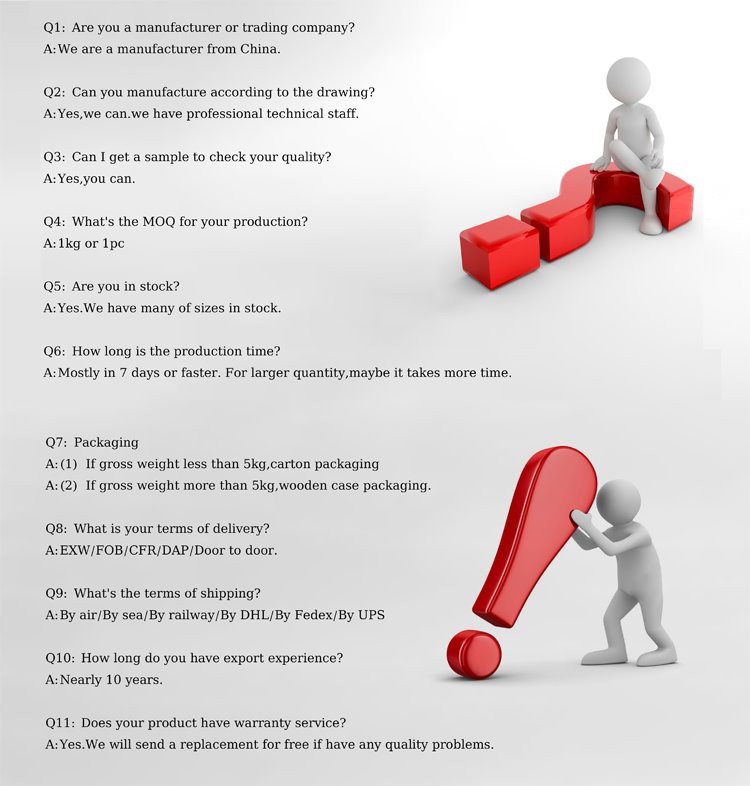

FAQ
Contact us
